yarn cone winder machine good price quality assured

  • yarn cone winder machine good price quality assured
  • yarn cone winder machine good price quality assured

yarn cone winder machine good price quality assured

    Unit Price: 4000~50000 USD
    Min. Order: 1 Set/Sets
    Packaging: Exporting Seaworthy Package, Airworthy Package, Wooden Case, Iron Pallet,
    Productivity: 30 sets/month
    Brand: XINJIE
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 50 sets/month
    Certificate: ISO9001
    HS Code: 844540
    Port: Shanghai,Jiangyin,Zhangjiagang

Product Description

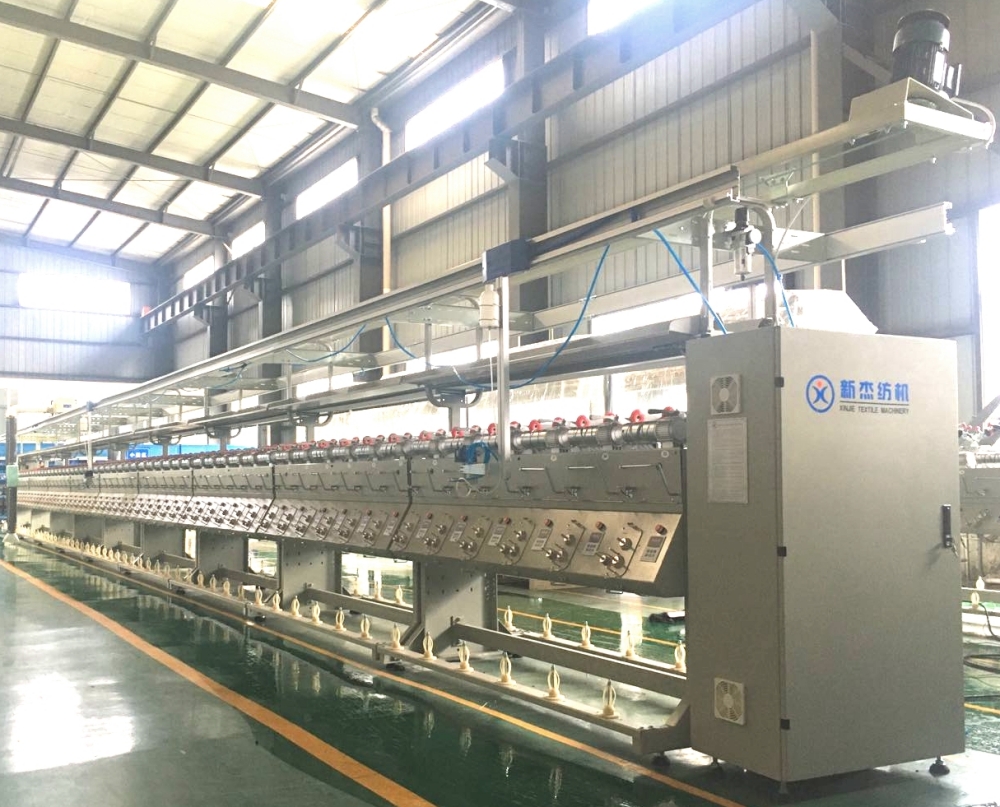

What is cone winding machine?


Cone winding machine is a high-level new-generation Textile Machinery product integrating machine, electricity, instrument and gas. The tube yarn is wound into a knotless bobbin and the yarn defect is removed during the winding process.


Cone winding machines are mainly used to unwind and rewind spools into cylindrical or tapered spools. Sizing machines are mainly used for fabric sizing. The carding machine is mainly used for pure spinning and blending of wool and chemical fibers. The raw wool is mixed in a certain proportion, and after several rounds of carding, the drafting is processed into soft bristles for the Roving Frame to produce roving.



Soft Winding Machine




Winder is a high-level new-generation textile machinery product integrating machine, electricity, instrument and gas. The bobbins are wound into knotless bobbins, and yarn defects are removed during the winding process. Its joints are mechanical knotting, air splicing, and mechanical drilling, which can be wet or hot. It is suitable for the winding process of cotton, wool, fiber, pure spinning and blended spinning to produce high-quality knotless yarn. Applicable fiber varieties: cotton, wool, chemical fiber and blended. Applicable yarn varieties: single yarn, stranded yarn.

Automatic winder is equipped with: air knotter, mechanical knotter; electronic yarn clearer; nickel alloy cast iron drum; mechanical anti-folding device; ; Waxing device; Head integrated monitoring system; Swimming and suction device. The winder has the advantages of high efficiency, high speed, high quality, stability, convenient maintenance and excellent performance.


Main technical parameters

Type


double-side single layer

No.of spindle

96 spindle for standard (12*8)

Spindle Gauge

332mm

No.of yarns

2~3yarns

Spindle speed

100~700m/min

Package type

Cylindrical

Package size

Max 0220x152

Motor drive

1 AC coaxial motor per bead

Anti-pattering Device

Control by Frequency Inverter

Auto-stop Device for Breakage

Optical sensors

Motor power

60W/spindle

Dimenson

lengthl 6380( ± 1998) x width1420 x heightl 550

Soft Package Winding Machine


Small cone to big cone winding machine which applies to wind left yarn after weaving, knitting or warping to become a big cone, then be reused.

It executed the designing and manufacturing of electromechanical integration. Structure is simple, and easy to install and adjust. Operation is convenient, using the central computer program settings, independent spindle motor drive controlled by inverter, electronic length counting, stop automatically when full bobbin or yarn break, electronic anti-overlap, date memory etc..

In yarn treatment proces, we need several machine such as yarn winding machine, yarn dyeing machine, hydro, steam dryer or RF dryer, which is important to get quality finished yarn for next process using. Hard Winding Machine

JIEPAI MACHINERY

  • 1
  • 2
  • 3
  • 4
  • 5
 Our group company established in 1997, and we have 2 facotories. One is DONGJIE for textile special parts including bottom roller,Tin pulley and ring board; another named JIEPAI branded XINJIE for Textile Machinery especially for yarn dyeing related machine which produces high speed soft and hard winding machine, doubling twisting machine and yarn dyeing machine, ect..
